STA / STV 540 Series Solenoid Valve , Pneumatic Control Valve Five Port G1 / 2 " Port Size
Model :
STV541 – 15 STV542 – 15 STV543C – 15 STV543E – 15 STV543P – 15
STA541 – 15 STA542 – 15 STA543C – 15 STA543E – 15 STA543P – 15
Working Medium :
40 Micron Filtered Air
Acting Type :
Internal Pilot Type
Thread Pipe :
Air Inlet = Air Outlet = Air Exhaust 1 / 2 “
The Position Counting :
Two – Position Five Port ,Three – Position Five – Port
Operating Temperature ( ℃ ) :
- 5 ~ 60 ℃
Sectional Area :
50mm² ( Cv=2.79 ) , 30mm² ( Cv=1.67 )
Working Pressure ( MPa ) :
0.15 ~ 0.8 MPa
Max . Pressure Resistance ( MPa ) :
1.2MPa
Protection Class :
IP65
Max . Action Frequency :
3 Cycles / Second
Voltage Range :
- 15 % ~ + 10 %
Shortest Excitation Time :
0 . 05 Second

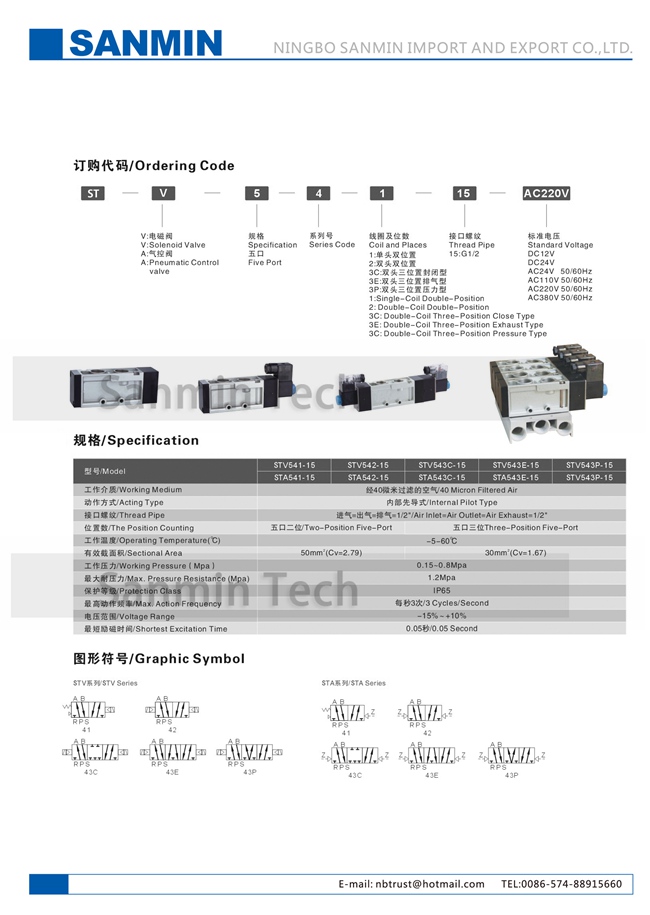

Ordering Code
ST
Type :
V : Solenoid Valve
A : Pneumatic Control Valve
Specification :
Five Port
Series Code :
4
Coil and Places :
1 : Single - Coil Double - Position
2 : Double - Coil Double - Position
3C : Double - Coil Three - Position Close Type
3E : Double - Coil Three - Position Exhaust Type
3P : Double - Coil Three - Position Pressure Type
Thread Pipe :
15 : G1/2
Standard Voltage
DC12V
DC24V
AC24V 50 / 60Hz
AC110V 50 / 60Hz
AC220V 50 / 60Hz
AC380V 50 / 60 Hz
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee
