MHSH3 Series Parallel Type Air Gripper 3 - Finger Type Through - Hole Type Air Gripper
Air Gripper Specification
Model : MHSH3 - 16D , MHSH3 - 20D , MHSH3 - 25D , MHSH3 - 32D , MHSH3 - 40D , MHSH3 - 50D , MHSH3 - 63D , MHSH3 - 80D
Cylinder bore size (mm): 16 , 20 , 25 , 32 , 40 , 50 , 63 , 80
Fluid : Air
Operating pressure ( MPa ) : 0.2 to 0.6 , 0.1 to 0.6
Ambient and fluid temperature ( ℃ ) : - 10 to 60
Repeatability ( mm ) : ± 0 . 01
Max . Operating Frequency ( C.P.M. ) : 120 , 60
Lubrication : Not reguired
Action : Double acting

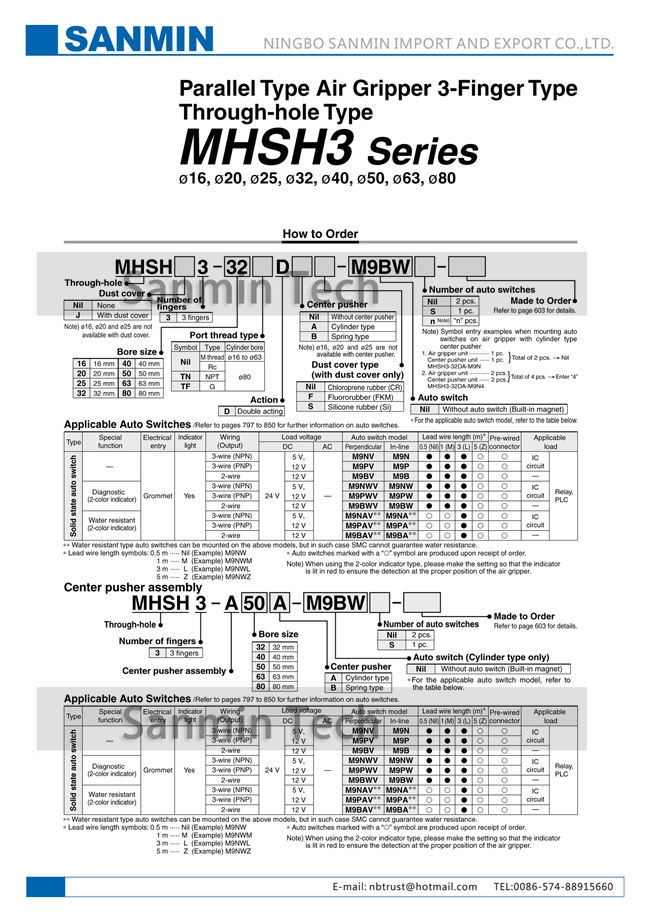

How to Order
Dust cover
Nil : None
J : With dust cover
Number of fingers
3 : 3fingers
Bore size
16 : 16mm
20 : 20mm
25 : 25mm
32 : 32mm
40 : 40mm
50 : 50mm
63 : 63mm
80 : 80mm
Center pusher
Nil : Without center pusher
A : Cylinder type
B : Spring type
Dust cover type
( with dust cover only )
Nil : Chloroprene rubber
F : Fluororubber ( FKM )
S : Silicone rubber ( Si )
